PCB Solder Mask
PCB solder mask is a protective coating applied to the printed circuit board surface. It is mainly used to prevent unwanted solder bridging, protect copper traces, and improve the overall reliability and appearance of the PCB.

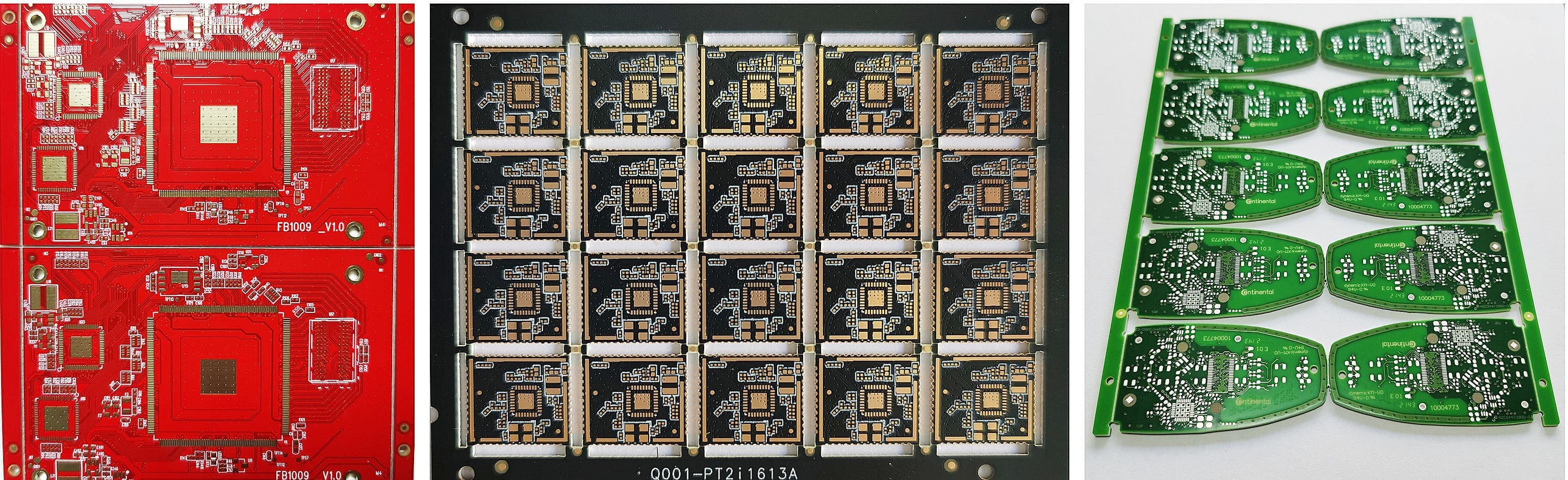

Illustration
What Is PCB Solder Mask?
Solder mask is a coating applied to the PCB surface to prevent solder from sticking to unwanted areas. It normally covers the copper traces while leaving pads and other required soldering areas exposed.
It is especially important for boards assembled by automated soldering processes such as reflow soldering or wave soldering.
Copper is for electrical connection.
Solder mask is for insulation and protection.
Silkscreen is for text and visual marking.
Why PCB Solder Mask Matters
- It helps prevent solder bridging during assembly.
- It protects copper traces from oxidation and contamination.
- It improves board insulation and surface protection.
- It improves the overall appearance of the finished PCB.
Common PCB Solder Mask Options
| Option | Description |
|---|---|
| Top Solder Mask | Solder mask applied to the top side of the PCB. |
| Bottom Solder Mask | Solder mask applied to the bottom side of the PCB. |
| Top and Bottom Solder Mask | Solder mask applied to both sides of the PCB. |
| Solder Mask Color | Common colors may include green, red, blue, black, white, yellow, and others depending on process availability. |
Why Green Solder Mask Is Common
Based on the original page information, green solder mask is usually the most economical choice. In many standard PCB projects, green solder mask is also the most common default option.
Other colors are often available, but they may cost a little more depending on the manufacturing process and order details.
If you do not have a special appearance requirement, green solder mask is usually the most economical selection.
Important PCB Solder Mask Design Notes
- Solder mask openings must correctly expose the pads that need soldering.
- Very fine-pitch pads may require careful solder mask design review.
- Solder mask clearance and expansion affect manufacturability and assembly quality.
- For special PCB structures, solder mask design may need engineering review before production.
Common Questions About PCB Solder Mask
Is solder mask necessary for all PCBs?
In most standard PCB manufacturing, solder mask is considered an important and normal process layer. It is especially necessary for automated assembly and reliable production.
Does solder mask affect electrical conduction?
Solder mask is not intended to conduct electricity. Its role is protection, insulation, and solder control.
Can I choose a color other than green?
Usually yes, but non-green colors may cost a little more and may depend on manufacturing availability.
