Castellated Hole PCB
- To fabricate High quality castellated hole PCBs is my company another strong point. We can fabricate the PCBs with plated vias or thru holes that are cut through to create a partial or half holes. For the best result, please design the castellated hole diameter as larger as possible; and design the castellated surface pad sizes as larger as possible; Below are the castellated PCB photos taken from the PCBs we fabricated for our customers.
- The necessary conditions for Making Hole Tab Routing PCB: The hole diameter must be 0.5 mm (19.7 mil) at least, and the holes must be located at the PCB border lines.
- For getting castellated Hole PCB quotes, please click here.

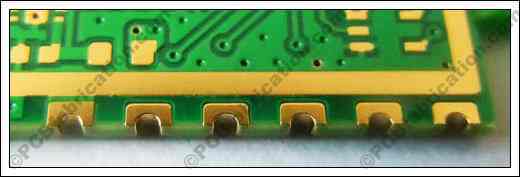

My Company Castellated Hole PCB Photos
